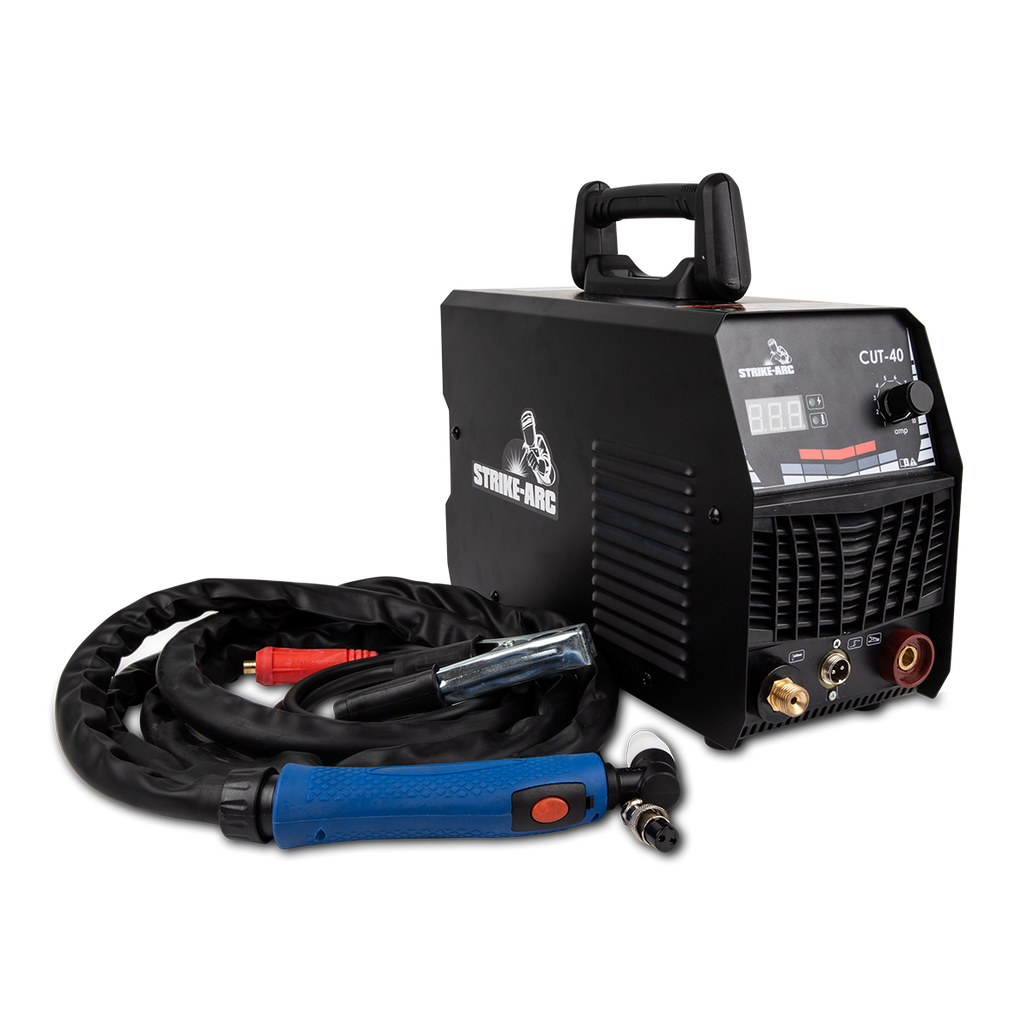

CUT40 PLASMA CUTTER

SACUT40

CUT40 PLASMA CUTTER

Barcode: 0723800389266

Cuts through electrically conductive materials by means of accelerated jet of hot plasma.

Plasma Cutter used for a wide range of cutting applications like Stainless Steel, Alloy Steel, Copper, Aluminium and all other colour metal. Max cutting depth 10mm. Clean compressed air must be provided.

  • Compact plasma cutter
  • Swivel carry handle
  • Thermal overload switch
  • PT-31 Torch - 3M
  • Cutting capacity 10 mm
  • Clean Air requirements: 3-5 Bar pressure
  • Manual voltage selection dial
  • Water trap / Regulator included
  • Light & Compact
  • Swivel carry handle
  • Quick Fit dinse Cable Connectors



Rated Input Power 7 kVA
Rated Input Current 34 V
No-load Voltage 280 V
Output Current Range 20 - 40 A
Rated Output Voltage 96
Duty Cycle 60%
Burner Inner Diameter 1.0 mm
Pressure of Air Compressor 45 - 70 psi (3-5 Bar)
Cutting Thickness 1 - 10 mm
Application Maintenance & Projects



Packlist:

  • CUT40 - Plasma Cutter
  • Cutting torch
  • Water trap / Regulator
  • Hose & securing clamps
  • Accessories included: Handheld face shield, Wire brush/hammer, earth clamp & electrode holder cables sets.
